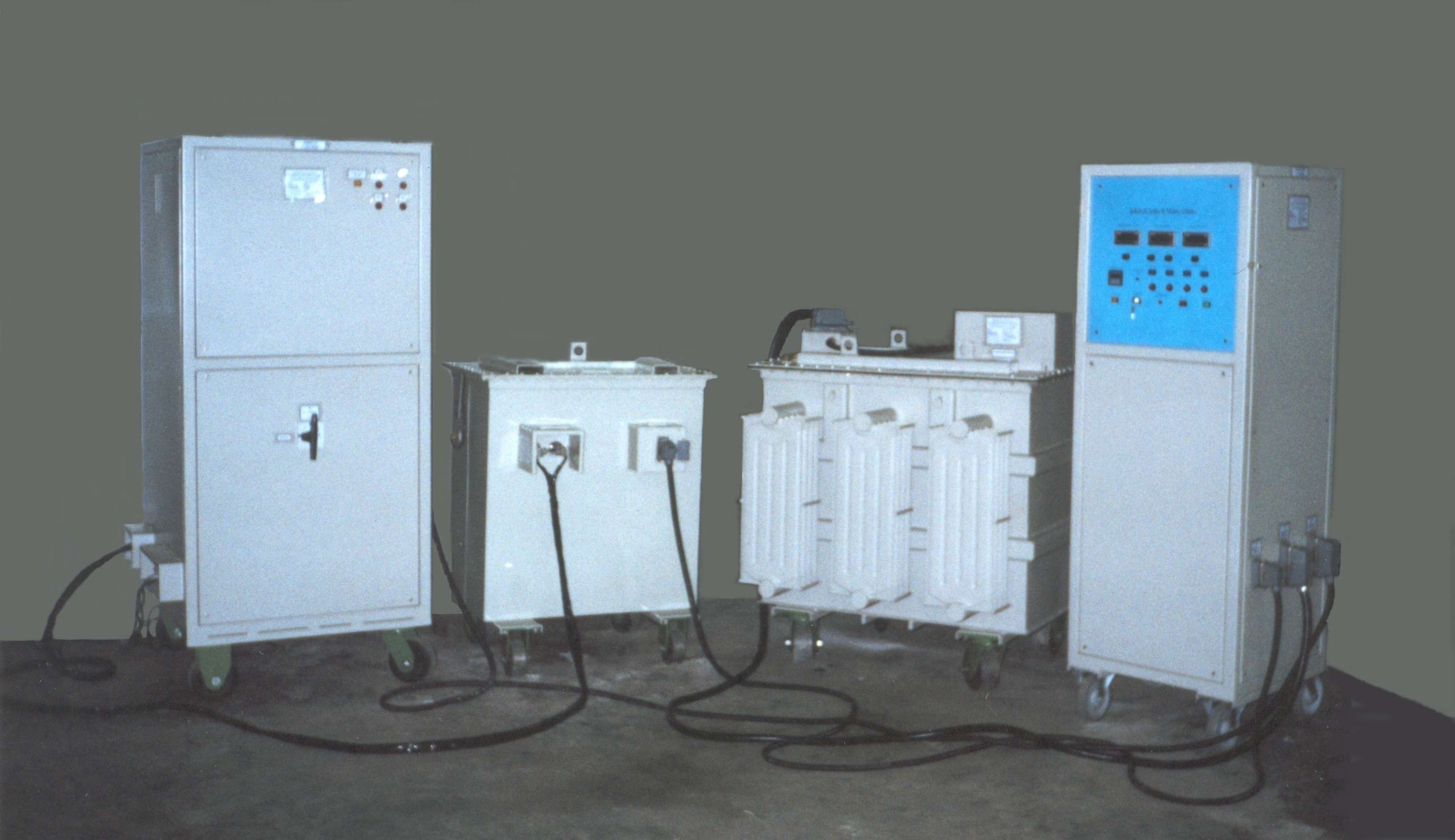

High voltage equipment in AC

They are used in engine testing, capacitors, transformers, insulators, panels, generators, cables, hydrogenerators, etc.

ASSEMBLY

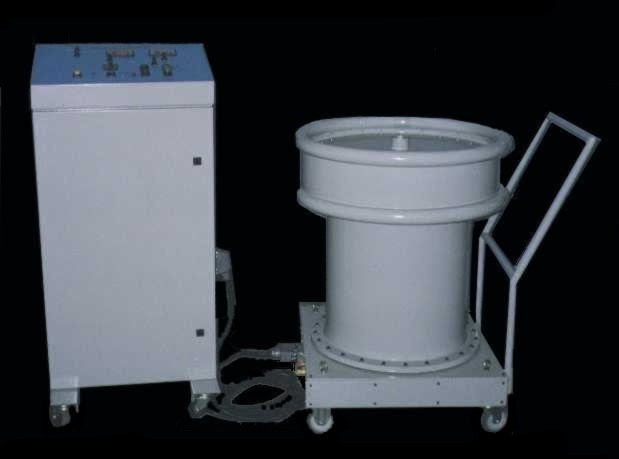

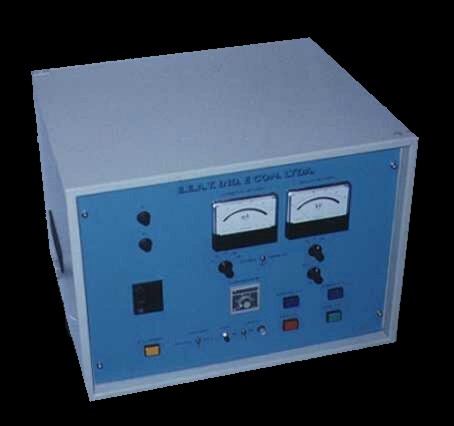

Module of control and measurement in steel with electrostatic epoxy-type paint, high-strength polycarbonate panel.

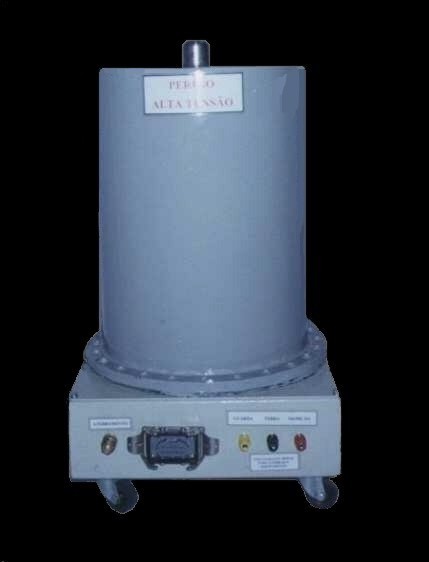

High tensile modulus of steel or fiberglass with wheels for easy transport.

TECHNICAL SPECIFICATIONS

• Electric power: 220 V +- 10 % 50 or 60 Hz (On request they can be supplied with other voltages)
• Output voltage: Modules up to 300 kVca. (Continuous variation of the output voltage from 0.3 to 100%)
• Power rating: 0.5 to 300 kVA
• Distortion Level: less than or equal to 5%
• Duty cycle: 1 hour switched on, 1 hour switched off. (On request they can be supplied with other duty cycles)
• Output Voltage Measurement with kilos voltmeter, analog or digital, connected to the high voltage output (direct measurement)
• Measuring the output current with microamperimeter, analog or digital, connected in the feedback circuit of High Voltage (direct measurement)
• Signposts: Lamp "Power On", Lamp "High Voltage On", Lamp "High Voltage Off"
• Protections: Zero volt, external contact, overvoltage, overcurrent (ultra fast), thermal magnetic circuit breaker, fuses

OPTIONALS

• Timer
• Alarm sound
• Motorized drive
• Automatic test cycle with determination of the test voltage and maximum "leak" current
• Measurements with "MEMORY"
• RS 232 Output
• Output for remote control
