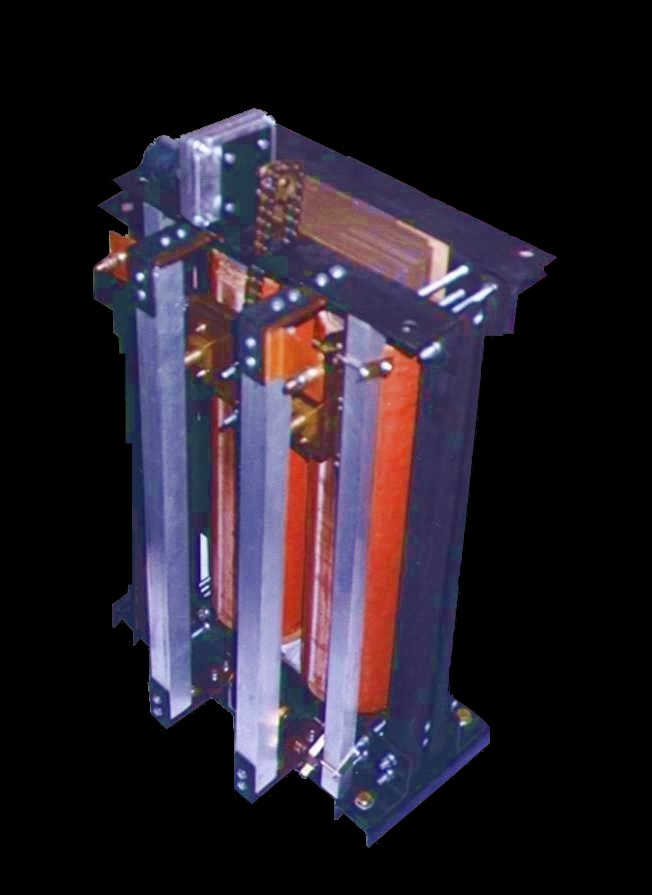

They are used for varying the supply voltage equipment such as transformers, motors, test benches, etc.

Control and measurement module in epoxy coated steel, high-strength polycarbonate panel with wheels for easy transport.

Electric power: 220 V up to 6.900 Vca 50 or 60Hz
Output voltage: 0,6 up to 200 % from Supply Voltage
Phases: 1, 2 or 3
Variation of the motorized tension.
Power rating: 15 up to 1.500 kVA
Distortion Level: less than or equal to 1 %
Duty cycle: 1 hour switched on, 1 hour switched off. (On request they can be supplied with other duty cycles)
Output Voltage Measurement with kilos voltmeter, analog or digital, connected to the high voltage output (direct measurement)
Measuring the output current with microamperimeter, analog or digital, connected in the feedback circuit of High Voltage (direct measurement)
Signposts: Lamp "Power On", Lamp "Output Power On", Lamp "Output Power Off"
Protections: Zero volt, external contact, overvoltage, overcurrent (ultra fast), thermal magnetic circuit breaker, fuses
